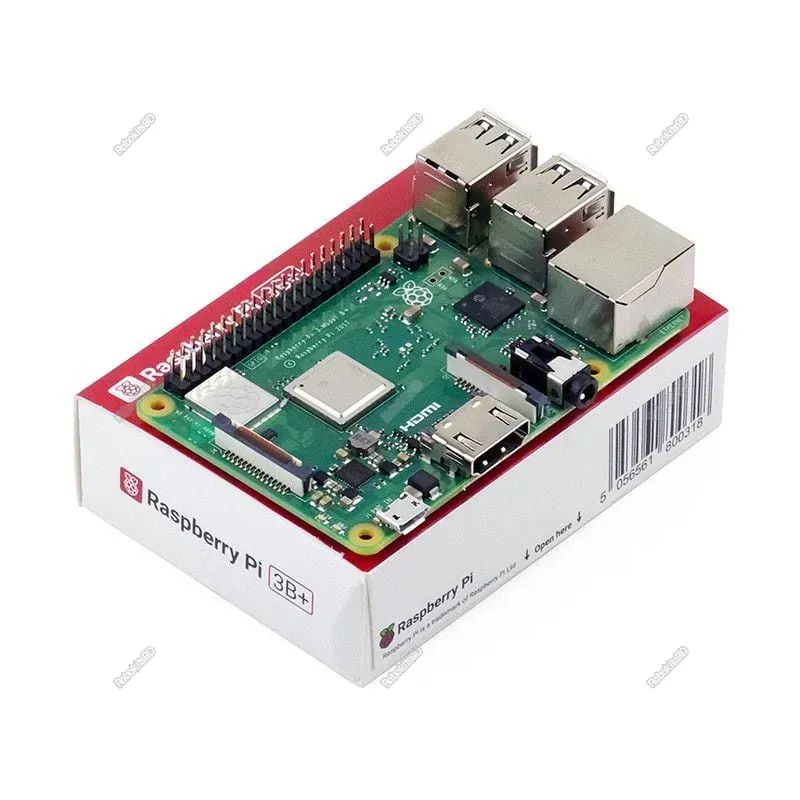

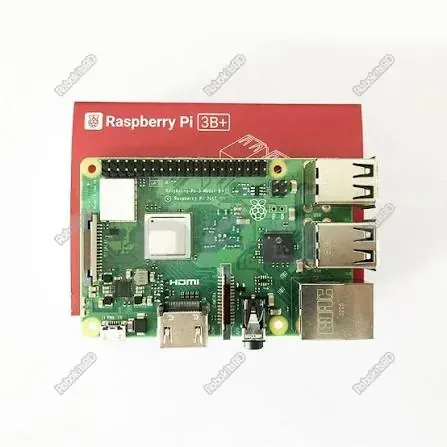

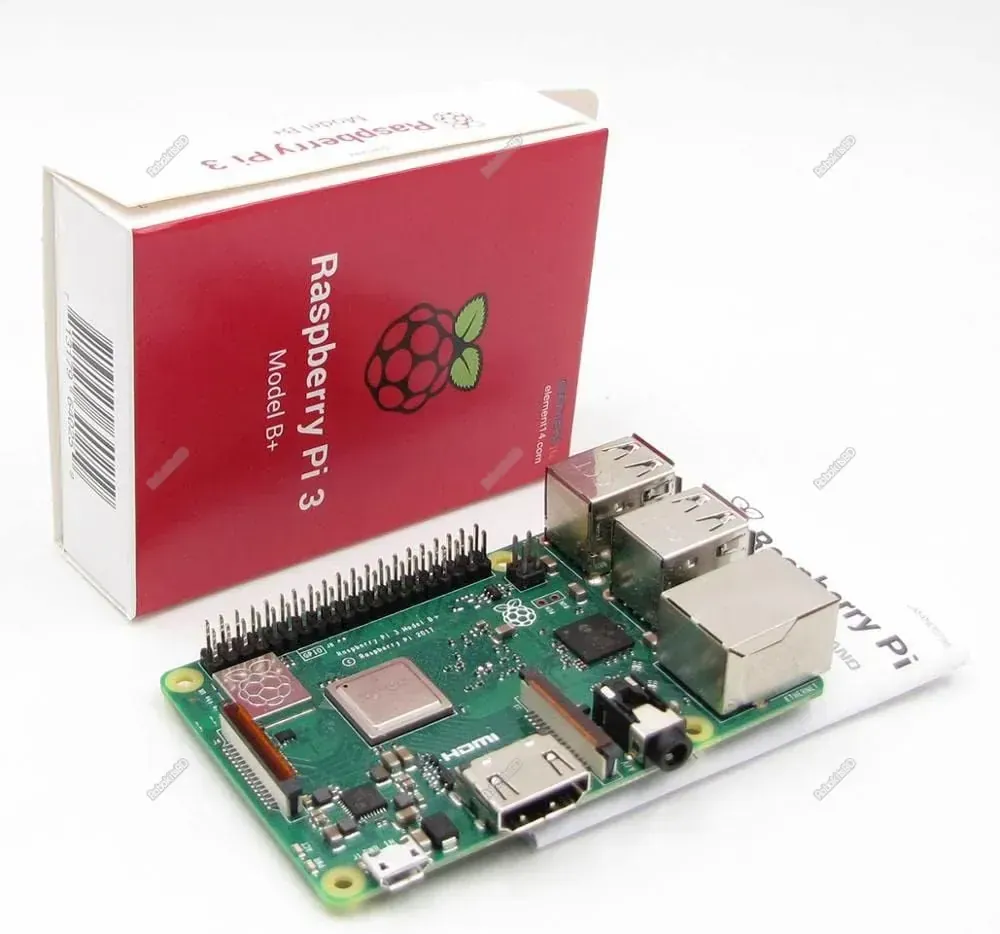

Raspberry Pi 3 Model B+

Raspberry Pi 3 Model B+ is a low cost and small sized single board computer developed by the Raspberry Pi Foundation for educational, research, embedded systems and Internet of Things (IoT) applications. Introduced in March 2018, it is an improved version of the Raspberry Pi 3 Model B, offering faster networking, enhanced thermal management, and better wireless connectivity while maintaining compatibility with previous Raspberry Pi models.  Raspberry Pi 3 Model B+ is a favourite for robotics, home automation, surveillance systems, artificial intelligence projects, industrial automation and educational labs thanks to the versatility, low cost and powerful performance.

The Raspberry Pi 3 Model B+ is powered by a 1.4 GHz 64-bit Quad-Core ARM Cortex-A53 processor, which provides sufficient computing power for multitasking and embedded applications.  Thanks to the 1 GB LPDDR2 SDRAM, users can run several programs, process data efficiently, and run Linux-based operating systems. Although it has modest memory compared to modern computers, it is adequate for most educational, networking, and IoT applications.

One of the major improvements in the Raspberry Pi 3 Model B+ is its networking capability.  Dual-band IEEE 802.11 b/g/n/ac Wi-Fi (2.4 GHz and 5 GHz) for fast and reliable wireless connectivity There’s also Bluetooth 4.2 with Bluetooth Low Energy (BLE) to connect wireless peripherals and IoT devices. The board also provides a Gigabit Ethernet port via USB 2.0 for data transfer rates of up to 300 Mbps, which is ideal for network servers and remote monitoring purposes.

The board includes 40 General Purpose Input/Output (GPIO) pins, enabling direct interfacing with sensors, relays, motors, LCD displays, cameras, and other electronic modules.  These GPIO pins support digital communication protocols such as I²C, SPI, UART, and PWM, making the Raspberry Pi compatible with numerous hardware devices used in automation and control systems.

The Raspberry Pi 3 Model B+ has a Full-Size HDMI port for multimedia use and supports Full HD (1920 × 1080) video output. It also features a CSI camera connector for Raspberry Pi cameras, and a DSI display connector for official Raspberry Pi touchscreens. There are four USB 2.0 ports to connect keyboards, mice, storage devices, printers, webcams and other USB peripherals.

The Raspberry Pi 3 Model B+ uses a MicroSD card as the primary storage device where the OS and user files are stored. It supports various operating systems, including Raspberry Pi OS, Ubuntu, LibreELEC, Kali Linux, and several other Linux distributions.  It is one of the best programming languages and is widely used in software development and education with languages like Python, C, C++, Java, Scratch, Nodejs, etc.

Power is supplied through a 5V Micro-USB connector, and the recommended power adapter is 5V, 2.5A.  The relatively low power consumption of the board makes it well suited for portable and battery powered applications. An improved thermal design and optimized power circuitry provide better stability during continuous operation.

Overall, the Raspberry Pi 3 Model B+ is a powerful, flexible, and affordable embedded computing platform.  Its combination of wireless connectivity, GPIO expansion, multimedia support, and Linux compatibility makes it an excellent choice for IoT systems, robotics, industrial monitoring, smart home automation, data acquisition, educational experiments, and research projects.  Its ease of programming and extensive community support continue to make it one of the most popular single-board computers available.
